Safety stop function
The FR-D700 series is compliant to the E Machinery Directive without the addition of previously required external devices. Operation of anexternal Emergency Stop device results in a highly reliable immediate shutoff of the D700’s output to the motor. This safety stop function conforms to the following standards.
Long-life design
The design life ofthe cooling fan has been extended to 10 years*1. The life of the fan can be further extended utilizing the it’s ON/OFFcontrol.
Easy wiring
Wiring is completed only by inserting wires treated with blade terminal (max. diameter 1.5 mm) Capable of wiring without a blade terminal.
Highly reliable
Spring structure in terminal contact section inside prevents contact fault by vibration.
Maintenance is unnecessary
Screw retightening is unnecessary.
FR-D700 SERIES AC DRIVE
FR- D720- 0.1K to 15K
FR- D740- 0.4K to 15K
FR- D720S- 0.1K to 2.2K
FR- D710W- 0.1K to 0.75K
FR-E700 SERIES AC DRIVE
FR- E720- 0.1K to 15K
FR- E740- 0.4K to 15K
FR- E720S-0.1K to 2.2

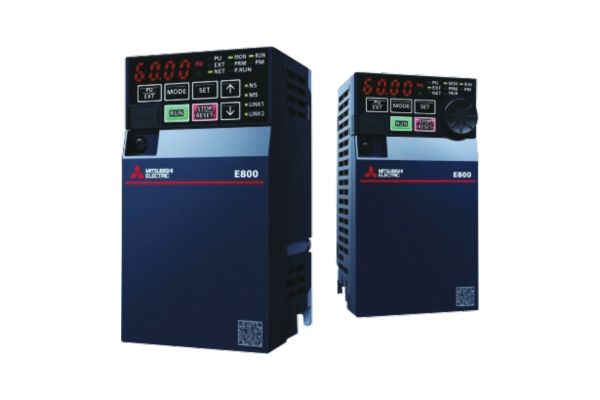

FR-E800 SERIES AC DRIVE
FR-E820-0008(0.1K) to 0330(7.5K)
FR-E840-0016(0.4K) to 0170(7.5K)
FR-E860-0017(0.75K) to 0120(7.5K)
FR-E820S-0008(0.1K) to 0110(2.2K)
FR-E820-0008(0.1K) to 0330(7.5K)E
FR-E840-0016(0.4K) to 0170(7.5K)E
FR-E860-0017(0.75K) to 0120(7.5K)E
FR-E820S-0008(0.1K) to 0110(2.2K)E
FR-E820-0008(0.1K) to 0330(7.5K)SCE
FR-E840-0016(0.4K) to 0170(7.5K)SCE
FR-E860-0017(0.75K) to 0120(7.5K)SCE
FR-E820S-0008(0.1K) to 0110(2.2K)SCE
FR-A800 SERIES AC DRIVE
FR-A820-00046(0.4K) to 04750(90K)
FR-A840-00023(0.4K) to 06830(280K)
FR-A842-07700(315K) to 12120(500K)
FR-A846-00023(0.4K) to 03610(132K)
